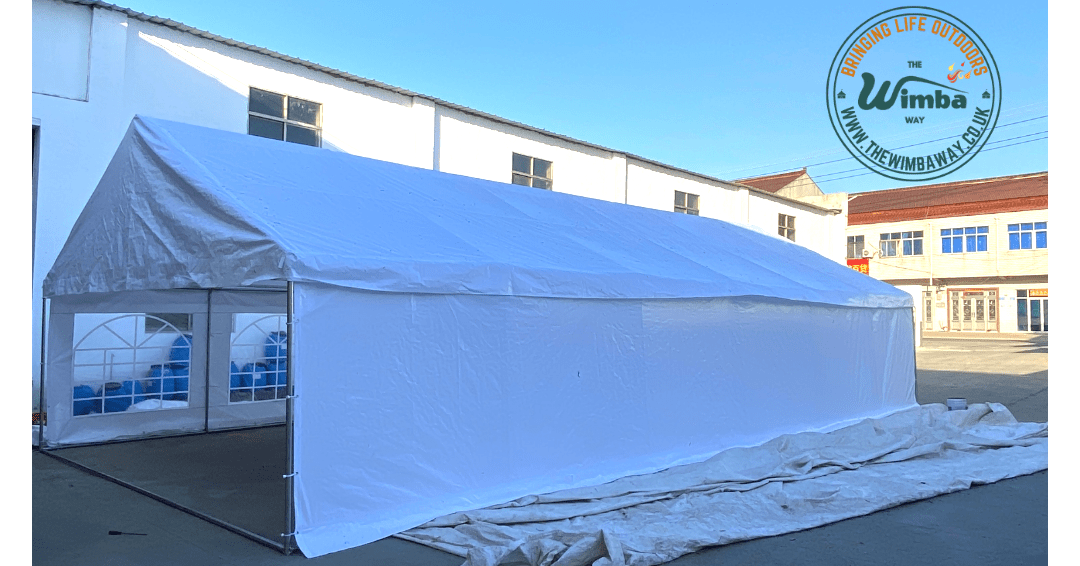

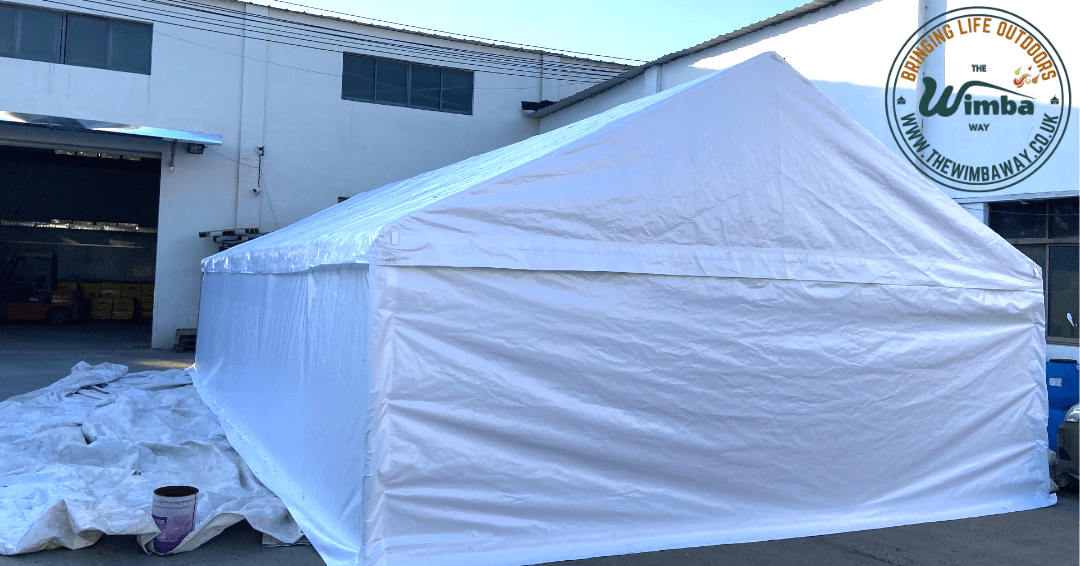

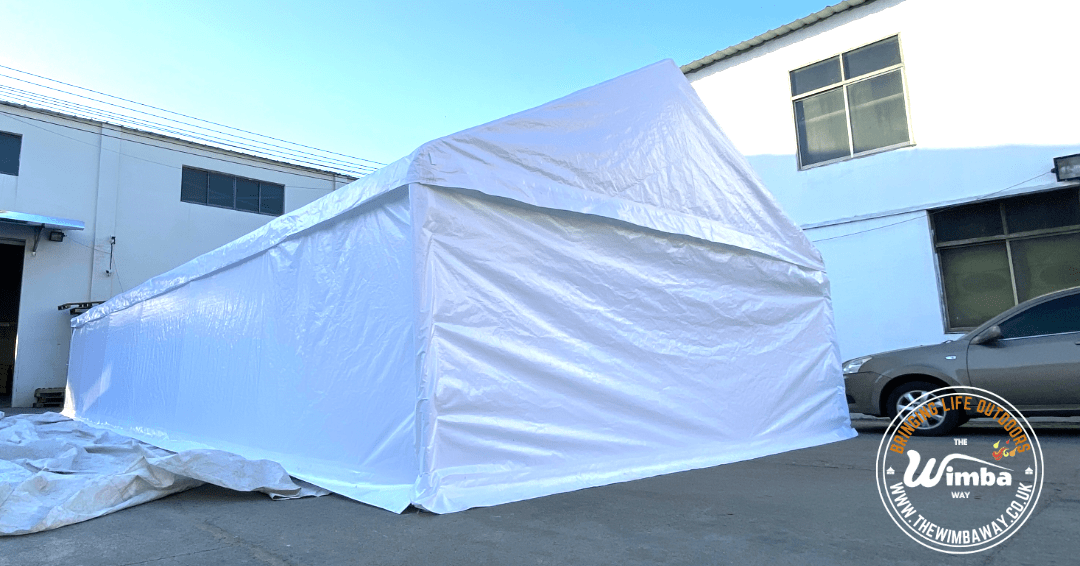

Range Description

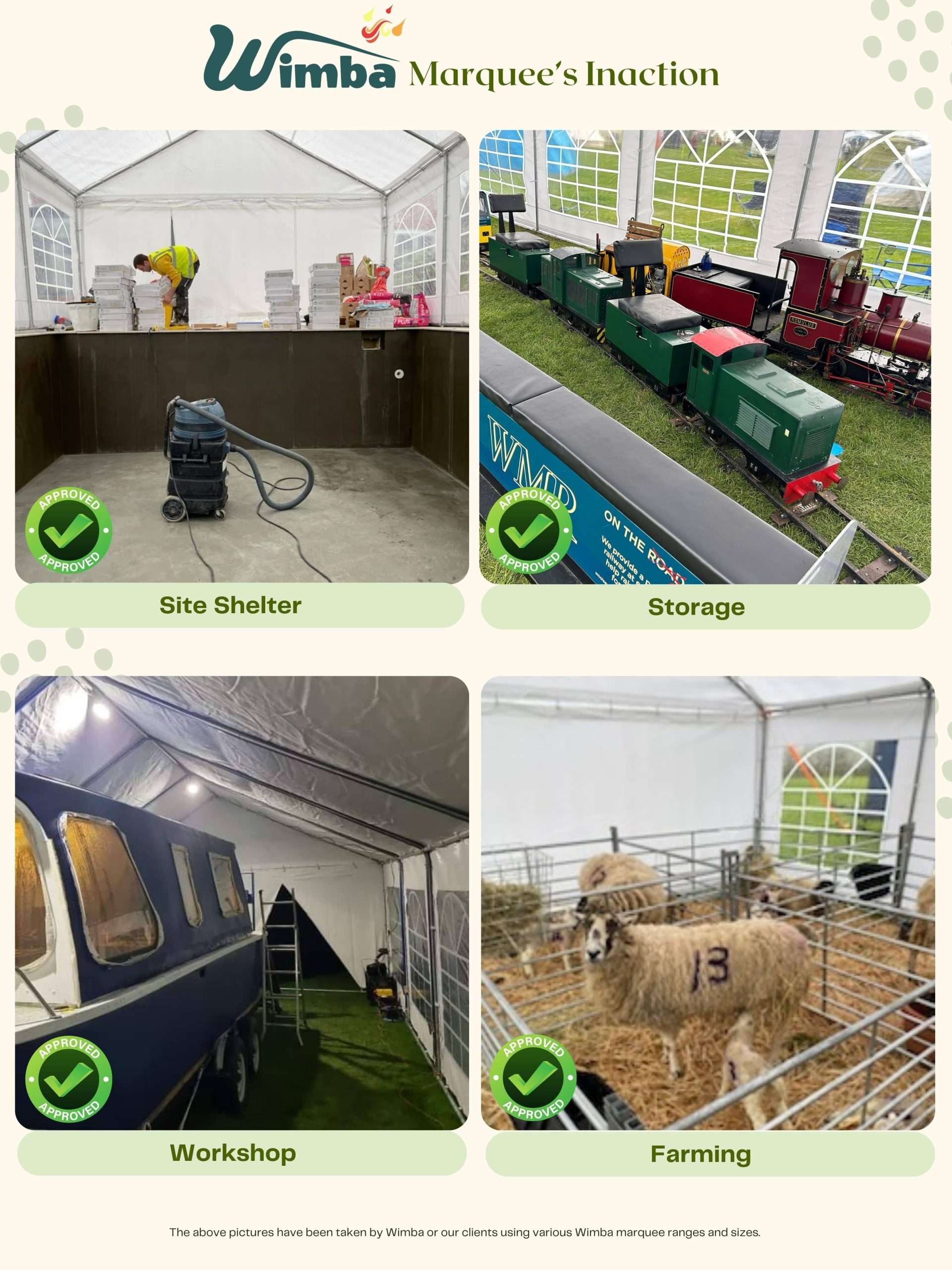

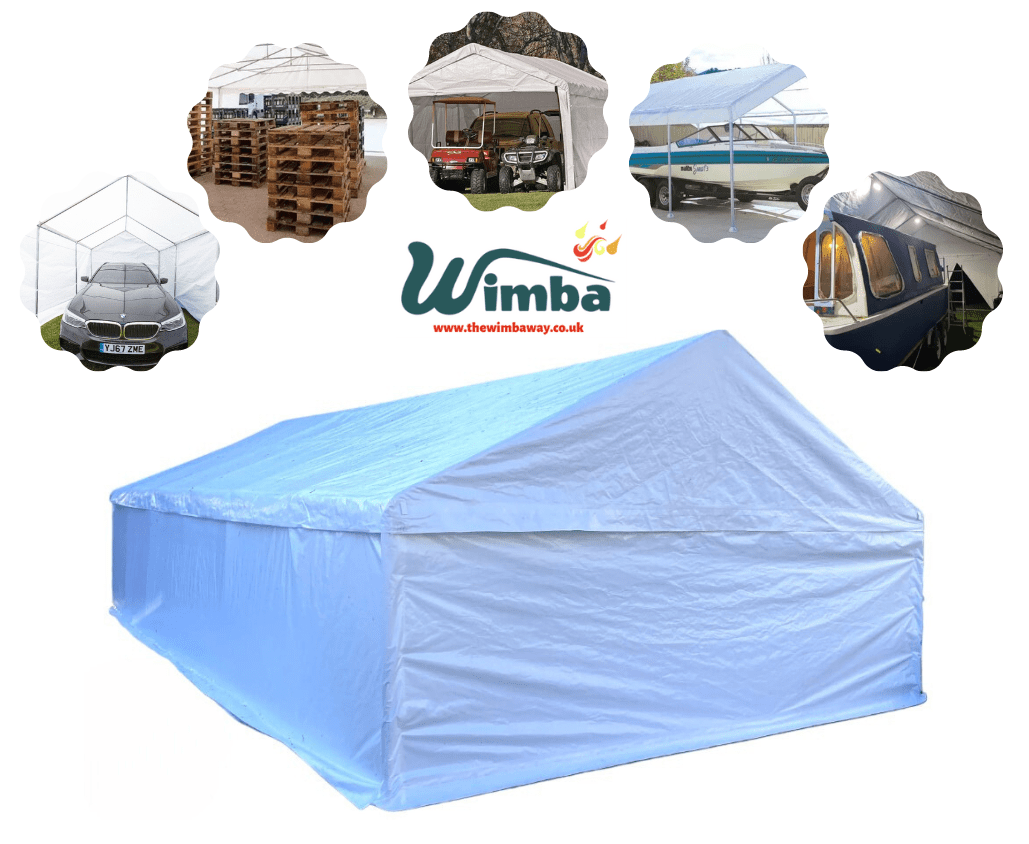

Our portable Carports / Storage Marquee’s offer you extra covered outdoor space. You may just want it to protect your car, equipment or stock or event as a shelter for furniture or a workshop. It really is a great multi-use outdoor structure.
Our Commercial Grade range is our highest grade 1 range. Like all our marquees, the frame is made of galvanized steel that is protected against corrosion. This range also comes complete with hard wearing 500gsm PVC tarpaulin for both the roof and side panels which is also fire-resistant to UK fire standard BS 7837-1996. The range also comes with a ground bar for extra stability.
Below is a summary of the key features of this range vs our other marquee ranges:
|
Heavy-Duty |
Deluxe Heavy-Duty |
Deluxe Heavy-Duty Plus |
Commercial Grade |
| Tarpaulin Material |
220gsm PE |
220gsm PE |
500gsm PVC |
500gsm PVC |
| Ground bar |
X |
✔ |
✔ |
✔ |
| Fire-resistant |
X |
X |
X |
✔ |
| Range Grade Rating (1 is high) |
4/4 |
3/4 |
2/4 |
1/4 |
| Overview |
| Item No. |
|
| Size |
4x8m |
| Weight |
164.9kg |
| Tarpaulin Material |
PVC |
| Colour |
White |
| Boxes |
6 |

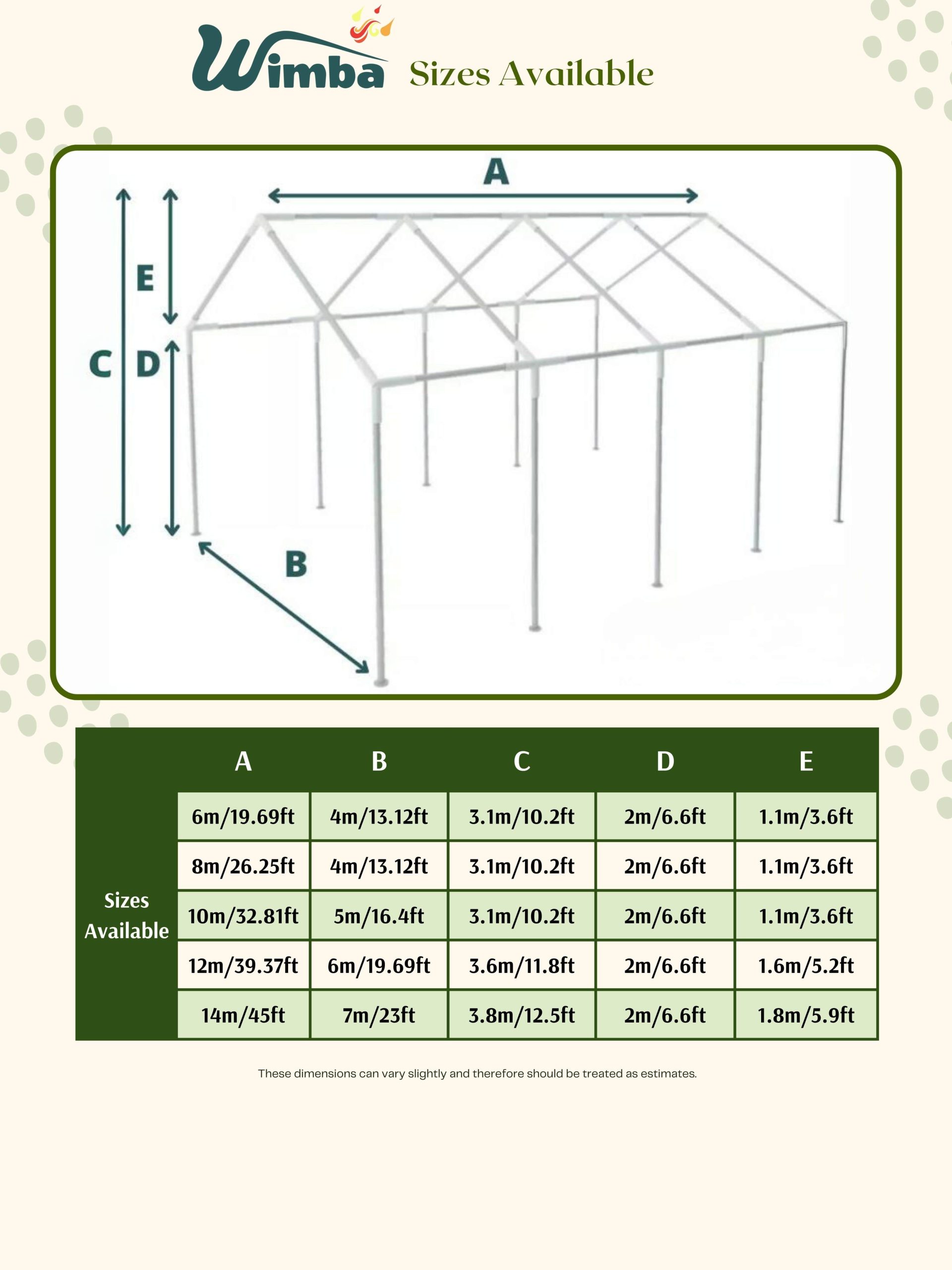

| Dimensions |
| Width |
4m/13.1ft |
| Length |
8m/26ft |
| Internal space |
32²/344.4ft² |
| Eave height |
2.0m/6.6ft |
| Ridge height |
3.1m/10.2ft |
| Frame |
| Frame Material |
Galvanised Steel |
| Galvanised zinc coating |
Double 100g/m2 coating |
| Rust resistant |
Yes – The galvanised steel used has been treated with an oily layer to give greater protection from corrosion. |
| Leg frame |
38 x 38 x 1mm |

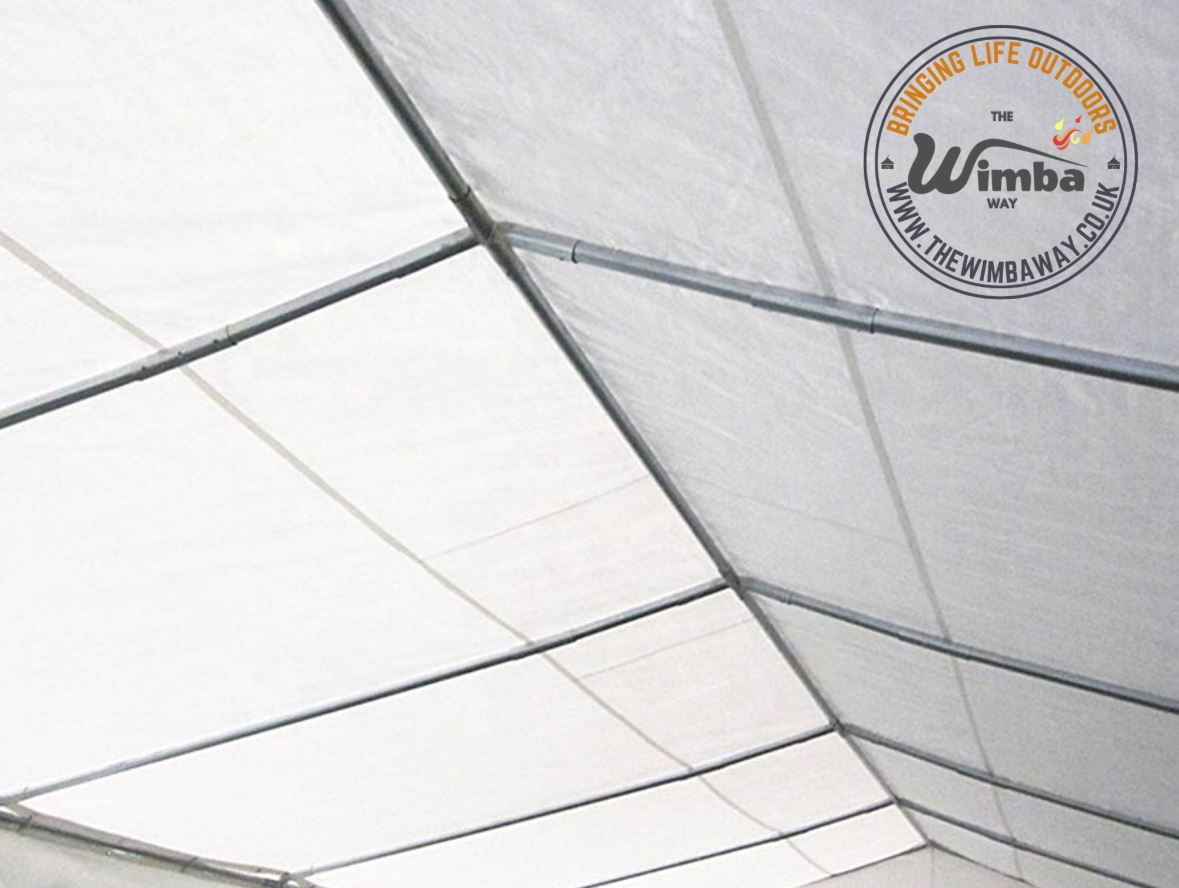

| Roof frame |
38 x 38 x 1mm |

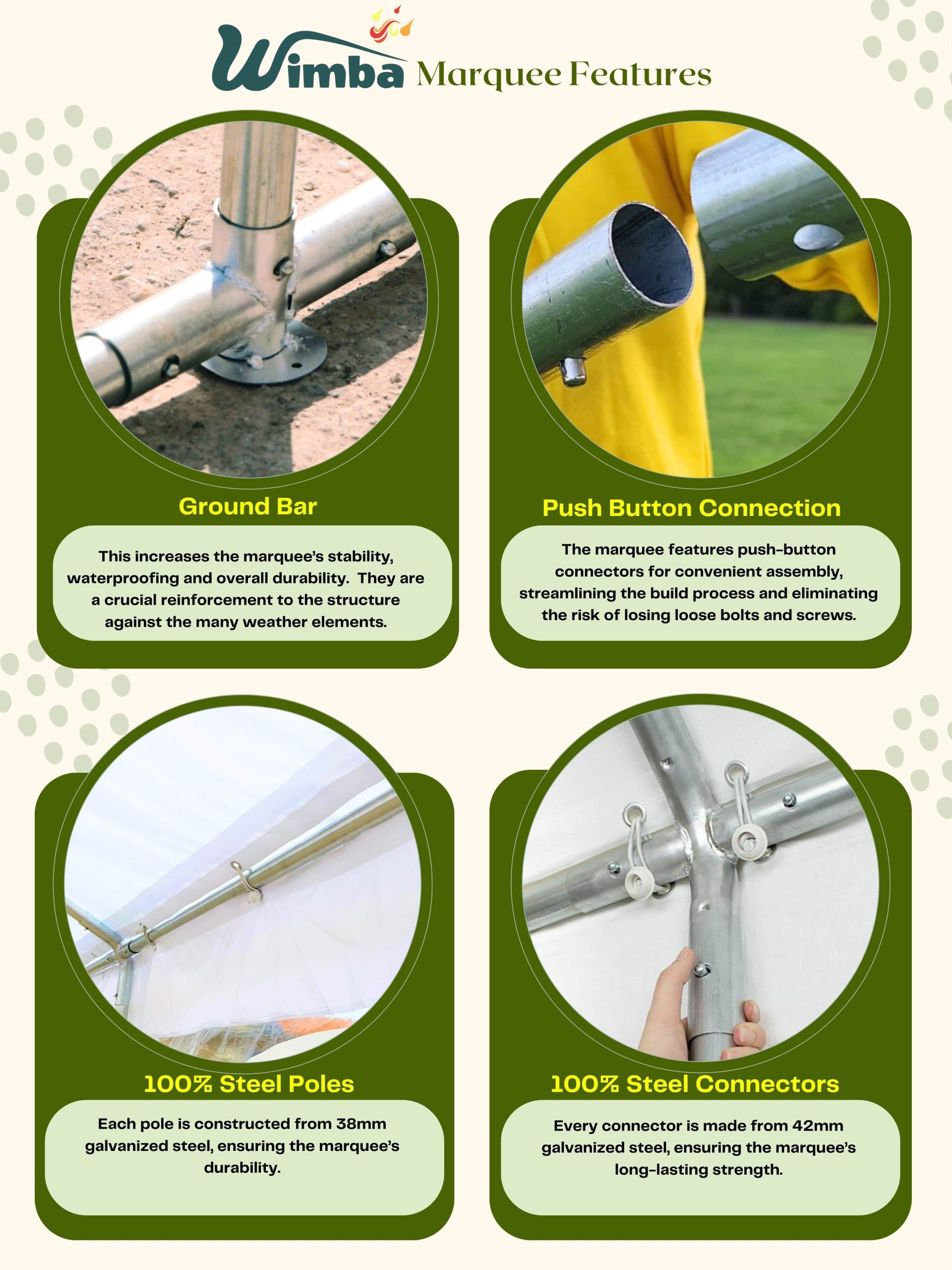

| Connectors |
42 x 42 x 1.2mm |
| Frame attachment method |
Quick and easy push button connectors |

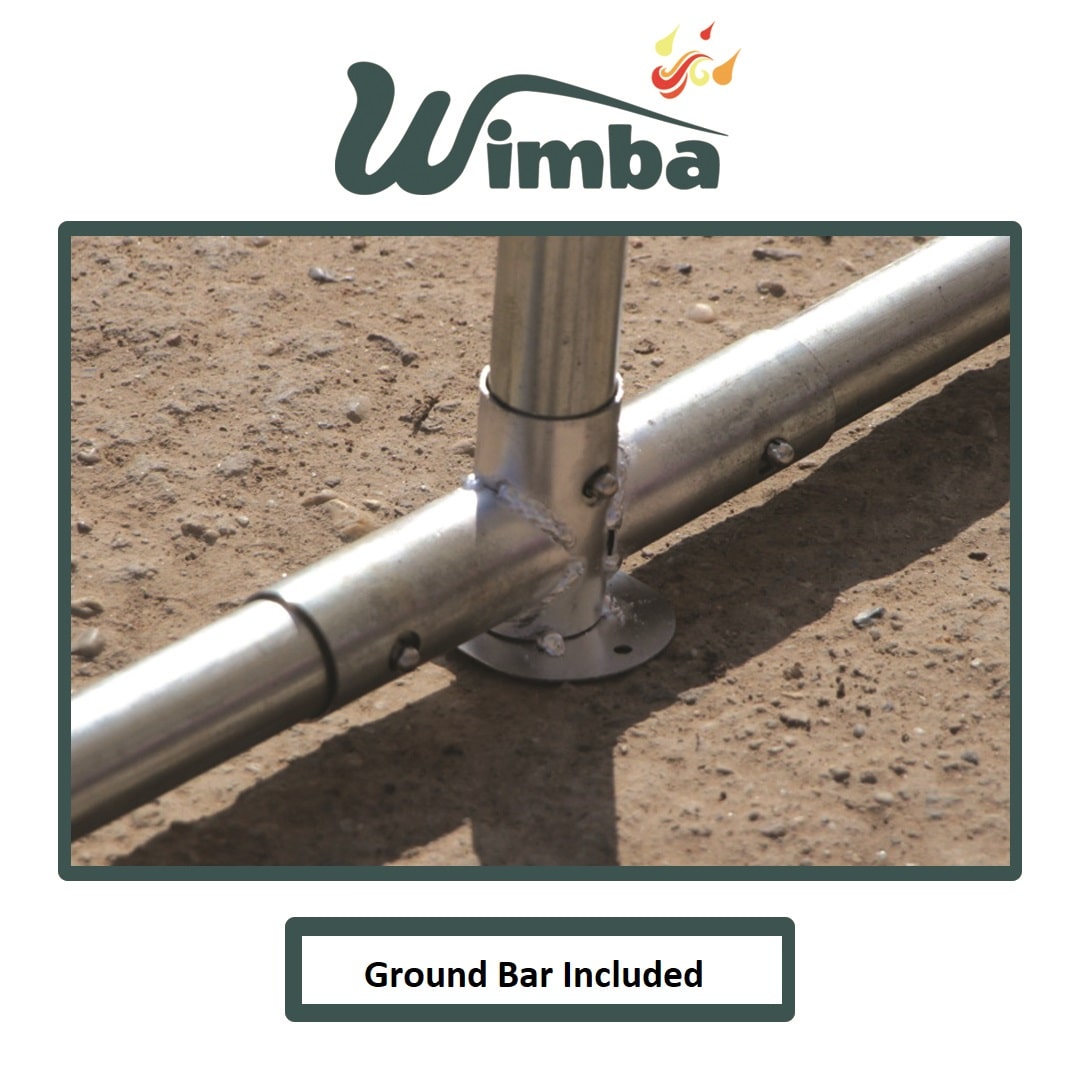

| Ground bar included |
Yes |
| Roof cross bar included |
No – It is not necessary, but we provide for our larger 6x12m and 7x14m models. |
| Enhanced roof bars (additional roof bars going down the length of the structure) |
No – It is not necessary, but we provide for our larger PVC models to support the weight of the PVC roof. |
| Roof Cover & Panels |
|
| Tarpaulin material |
100% pure PVC |
| Waterproof |
Yes |
| Fire-resistant |
Yes – certified to UK fire standard BS 7837-1996 |
| UV-resistant |
Yes |

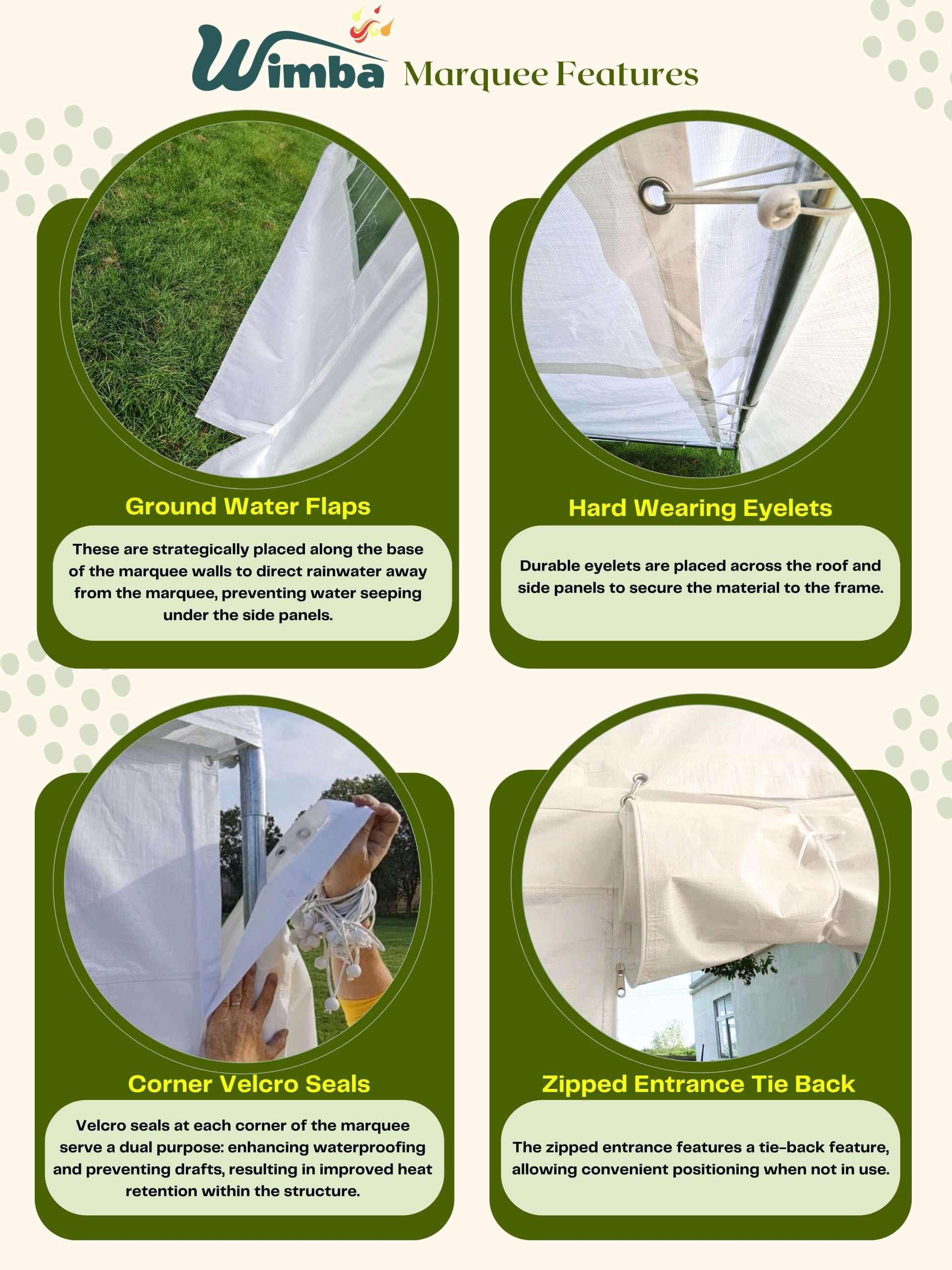

| Draft proof |
Yes – side panels come with overlapping velcro seals for each corner. |
| Outside ground water proofing |
Yes – sides overhang the outside of the structure to prevent water seeping under the side panels. |
| Roof gsm |
500gsm |
| Side panel gsm |
500gsm |
| Tearing-strength |
1200N reached to the standard ASTM D2261 |

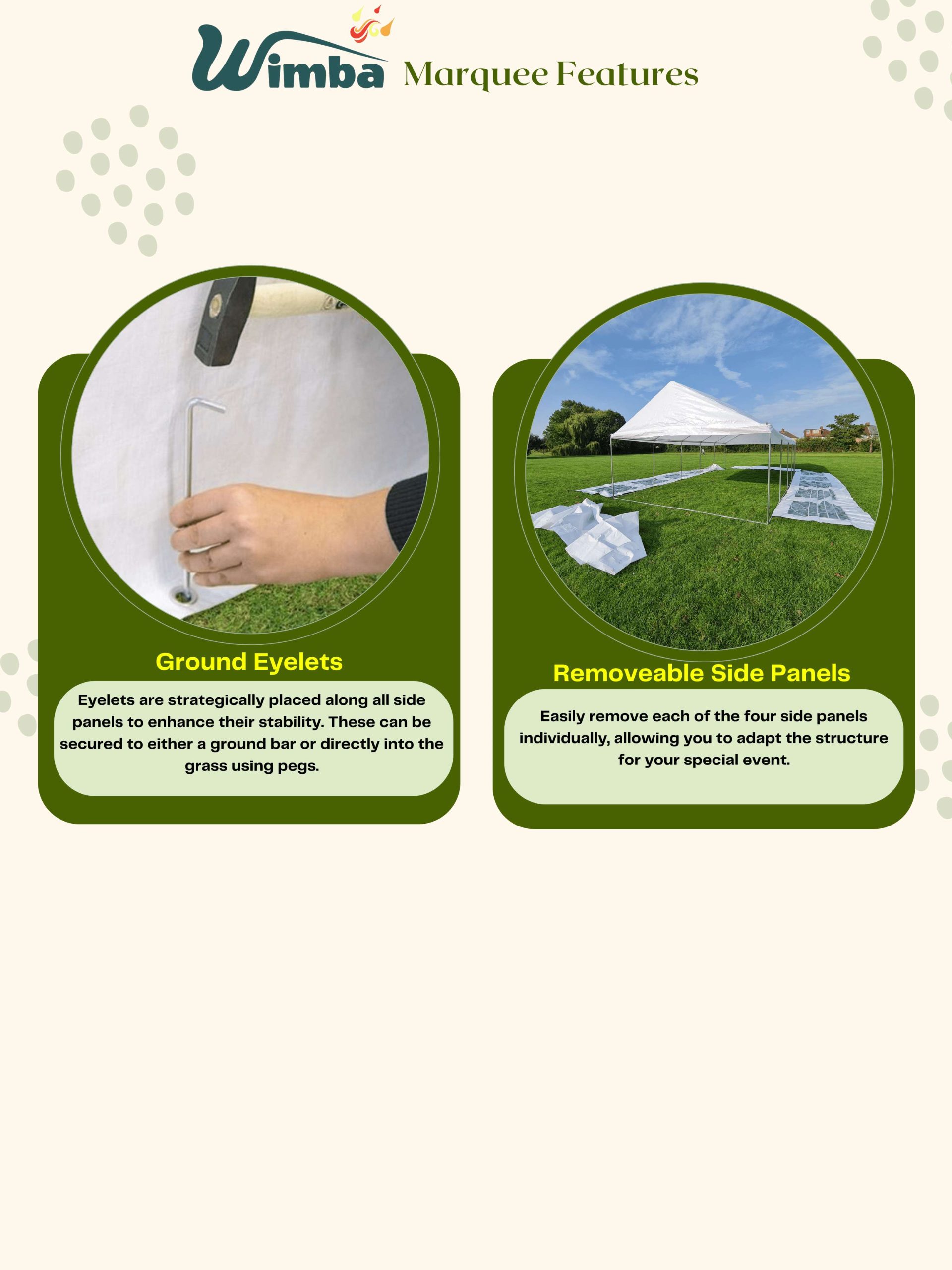

| Eyelets for attaching to ground bar/floor |
Yes |
| Printable fabric |
Yes |
| Roof & side panel attachment method |
Bungee balls |

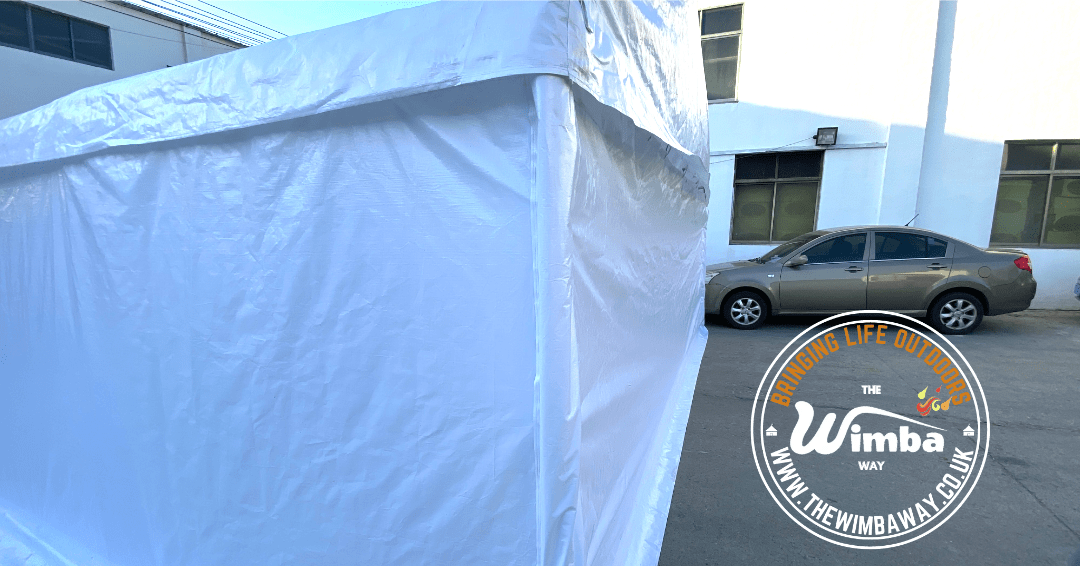

| All sides included |
Yes |

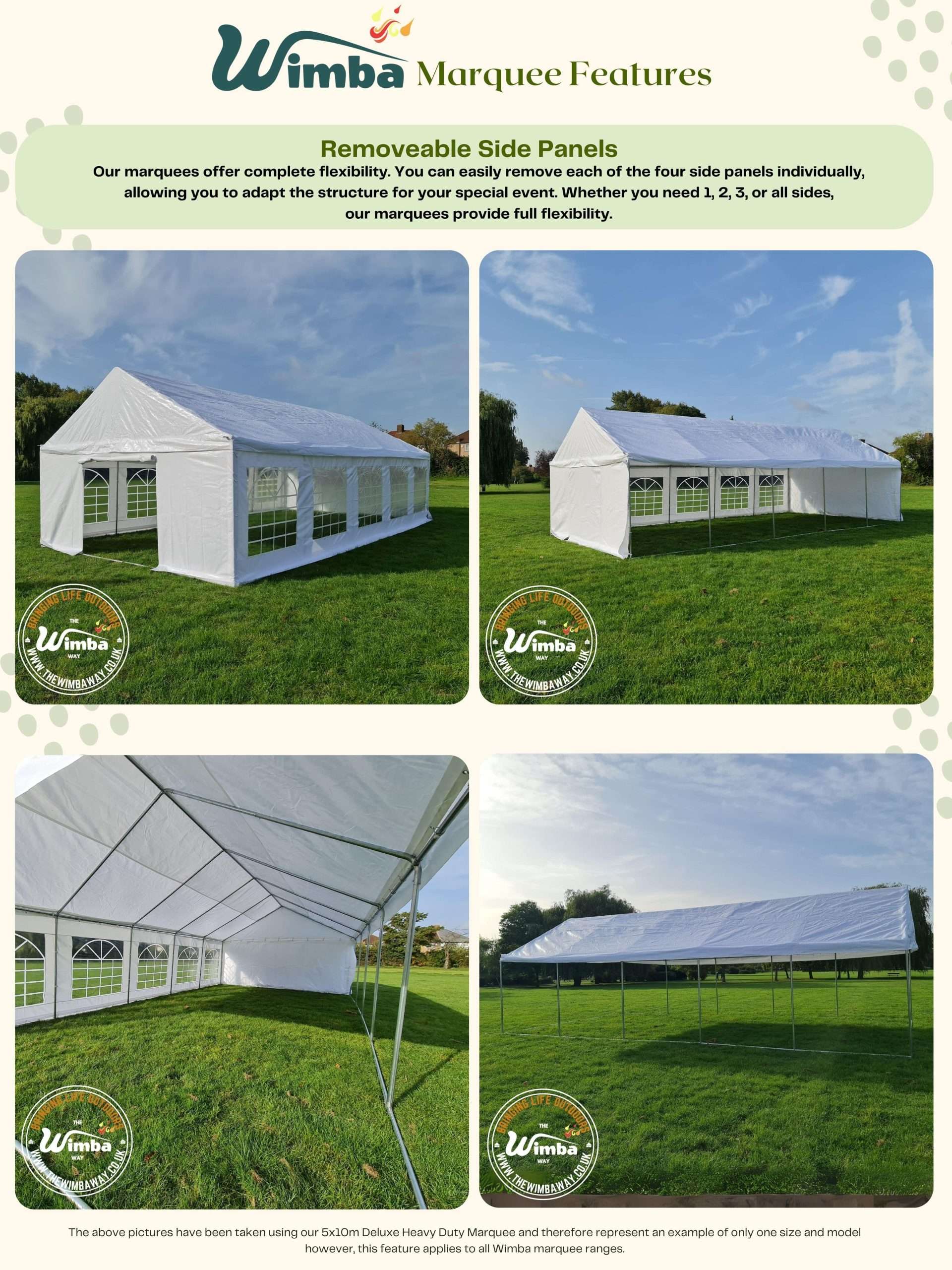

| Can each side be removed separately |
Yes |
| Number of separate panels |
4 |
| Number of window panels |
2 |
| Number of plain walls |
1 |
| Number of zipped entrances |
1 |
| Zipped entrance dimension |
2.0×2.0m |
| Zipped entrance tie back |
Yes |
| Window dimensions |
1.3×1.5m |
| Disclosures |
| On receiving your structure, please carefully check you have all component parts. Please do not wait until the day you intend to use the structure to then find you have missing or damaged parts. This will allow us time to provide you with any replacement components prior to you using the structure. |
| The galvanised steel used has been treated with an oily layer to give greater protection from corrosion. This may create marks on the fabric where the metal is in contact with the fabric. You can however wipe off this oily layer however, we do not recommend as it will increase the risk of corrosion. |
| Marquees are intended for events and other arrangements and are as such only meant for short term temporary assembly and disassembly. Wimba warranty applies only to the normal use of the product, normal wear and tear excepted, in accordance with written use instructions or manual. The warranty does not apply to damage caused by accident, abuse, weather conditions, misuse, modification or incorrect dismantle, erection, packing and storage of the product. |
